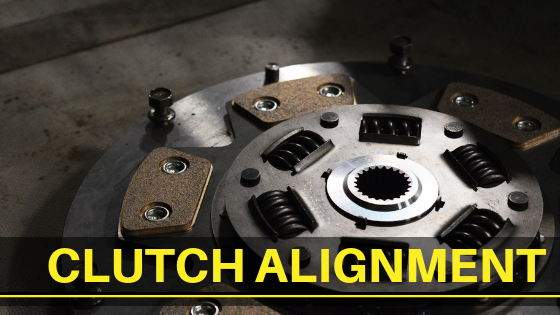

Tractor Clutch Alignment Tools
Get the right tool for the job, and make clutch alignment easier.
Installing a new clutch is a tough job. If the clutch disc slips out of alignment part the way through it wont engage with the input shaft and you may have to start again. Clutch alignment tools are required to properly align the clutch plate into the pilot bushing or bearing. To ensure the input shaft from transmission engages with the disc the clutch should be aligned with the flywheel. Using the correct alignment tool with splines that fit snugly and a snout that slots into the flywheel will align the disc centrally avoiding issues at a later date.
How to Use a Clutch Alignment Tool:
- Insert the tool into the clutch disc allowing the tool to stick all the way through the spines .
- Place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing
- Push the clutch tight to the flywheel.
- Install the pressure plate to the flywheel
- Tighten the bolts - torque to spec.
The clutch alignment tool should remain in place until you are ready to install the transmission at which point it can be removed.
Get the correct clutch alignment tool for your tractor. Each of our tools are suitable for a variety of models.
