ENGINE MODEL & EQUIPMENT:

1000 Series
1006.60 (YA)

Lip Seal

6 Cyl

Bore:
3.937 in
100.00 mm

HYSTER

H165-280 (YA70217)

JCB

Wheeled (YA50214)
Loader
Industrial (YA50339)

MF AGRICULTURAL

Wheeled (YA50214)
396 (YA31257)
399 (YA31240)

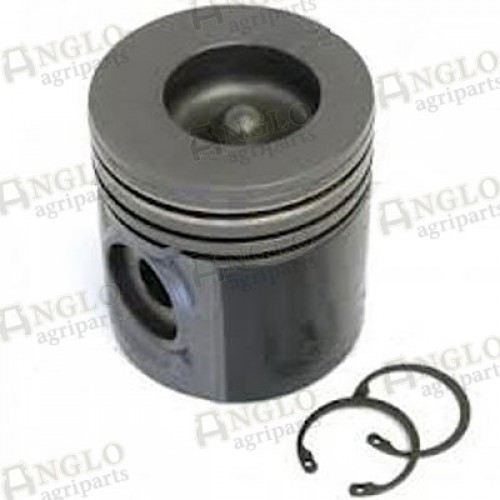

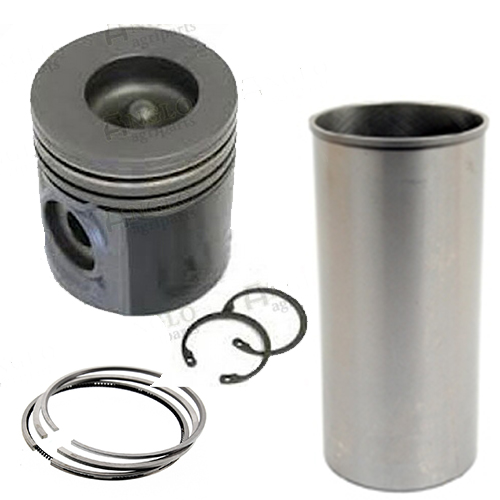

Piston & Pin
A60773
Piston Ring Set
A64307
Liner - Finished
A46425 (1)

Con Rod Bearing Set
A55188 Std.

A55188A 0.010
A55188B 0.020
A55188C 0.030
Set Of 6 Pairs

Thrust Washer Set
A40975 Std.

A41691 0.007

Set Of 2 Pairs

1. Crankshaft
A42724

2. Rear Seal
A47198  (3)
A48731 (4)

3. Front Seal
A43908

4. Ring Gear
A43617  126T

1. Top Gasket Set
A40339

2. Bottom Gasket Set
 A44451

3. Head Gasket
A55211

1. Bush, Con Rod
A56021x6

2. Bolt, Con Rod
A46630 x12

3. Nut, Con Rod
A65392 x12

4. Con Rod
A56849

Bushing, Cam
A65568 x1

Tappet
A57622

Pushrod
A52646

1. Valve Inlet A41499 x6

2. Valve Exhaust A58927 x6

3a. Valve Guide; Intake; A55852 x6

3b. Valve Guide; Exhaust A65763 x6

4. Valve Spring Inner A61489 x12 (2)

5. Valve Cotter A45458 x24

6. Valve Seal A63050S x8

Oil Pump
A51343

Oil Cooler
A68180 (5)

Lift Pump
A53573

Thermostat
A50948

1. Rocker Arm LH
A57873

2. Rocker Arm RH
A45709

Heater Plug
A40377 (bayonet fitting)

Whilst we strive to provide accurate data, on occasion information may be omitted or inaccurate. Please contact us at admin@anglo-agirparts.com if you identify an error or omission. We strongly advise you check confirm parts suitably via our Perkins Engine Search filter.
