Perkins 1006.60T To ESN 557976X

Perkins Parts Catalogue

ENGINE MODEL & EQUIPMENT:

1000 Series
1006.60T (YB)

TURBOCHARGED

Lip Seal

6 Cyl

Bore:
3.937 in
100.00 mm


APPLICATIONS

JCB

435 Front Loader (YB50292)

MF AGRICULTURAL

3625(YB31245)

PERKINS

Power Units(YB30127)
Power Units(YB30650)

TOVEL

TS18-44

DINGXIN

DP88S
DP120S
DP132S

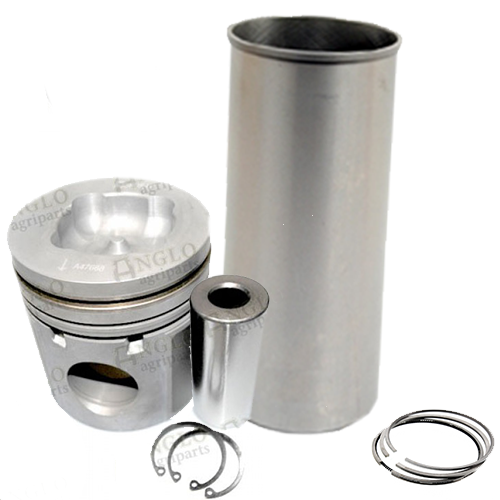

Piston Ring Set

A43354
Piston & Pin
A47668
Liner - Finished
A46425 (3)
6 Per Engine

Con Rod Bearing Set
A56969 Std.

A56969A 0.010
A56969B 0.020
A56969C 0.030
Set Of 6 Pairs

Thrust Washer Set
A40975 Std.

A41691 0.007

Set Of 2 Pairs
1. Crankshaft
A42724
2. Rear Seal
A47198
3. Front Seal
A43908
4. Ring Gear
A43617  126T

1. Top Gasket Set
A40339
2. Bottom Gasket Set
 A44451
3. Head Gasket
A55211

1. Bush, Con Rod
A56021x6
2. Bolt, Con Rod
A46630 x12
3. Nut, Con Rod
A65392 x12
4. Con Rod
A44740 (1)

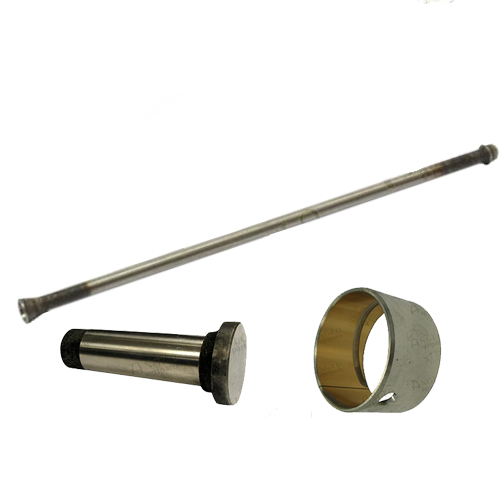

Bushing, Cam
A65568 x1
Tappet
A57622
Pushrod
A52646

1. Valve Inlet A56381 x6 (2)
2. Valve Exhaust A58927 x6
3a. Valve Guide; Intake; A55852 x6
3b. Valve Guide; Exhaust A65763 x6
4. Valve Spring Inner A61489 x12
5. Valve Cotter A45458 x24
6. Valve Seal A63050S x12
Oil Pump
A41350

Lift Pump
A53573

Thermostat
A50948 x2
1. Rocker Arm LH
A57873
2. Rocker Arm RH
A45709
Heater Plug
A40377 Spade Terminal (bayonet fitting)

1. Check with Build List.
2. 45 Degree Angle
3. Flanged, Semi Finished Liner available, A63911
