Perkins T3.152.4 Lip Seal

Perkins Parts Catalogue

ENGINE MODEL & EQUIPMENT:

3.152 Series
T3.152.4 (CN)

Lip Seal

3 Cyl

Bore: 3.6020 in
91.491mm


APPLICATIONS:

MF Agricultural
253 (CN31219)
264 (CN31214)
355 (CN31187)

Piston and Pin
A61955
Piston Ring - A3.152 - 3 Ring
A42709
Liner - Finished Cast Iron - With Lip / Flange
A62357 (1) 3 Per Engine

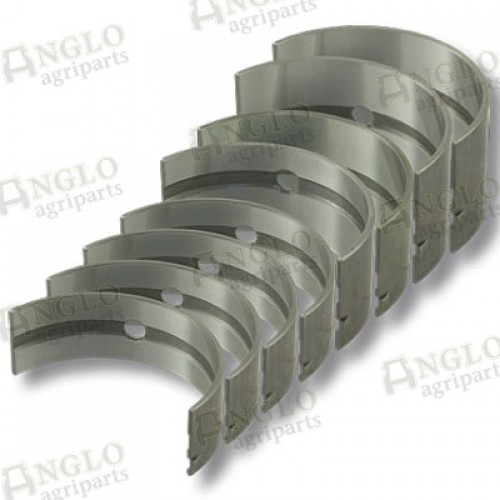

Main Bearing Set
A66748 Std. (2) A66748A 0.010
A66748B 0.020
A66748C 0.030
Set Of 4 Pairs

Con Rod Bearing Set
A51957 Std.
A51957A 0.010
A51957B 0.020
A51957C 0.030
Set of 3 Pairs

Thrust Rod Bearing Set
A43838 Std.

Front Seal A59217
Rear Seal A47198
Ring Gear
A59329  115T (3)
A43617  126T (3)

1. Gasket - Top Set - Composite Head Gasket
A47384
2. Bottom Gasket Set
A46739
3. Head Gasket
A55962

1. Bush, Con Rod
A42734 x3
2. Bolt, Con Rod
A62605 x6
3. Nut, Con Rod
A52133 x6
4. Con Rod
A58766

Camshaft
A47748

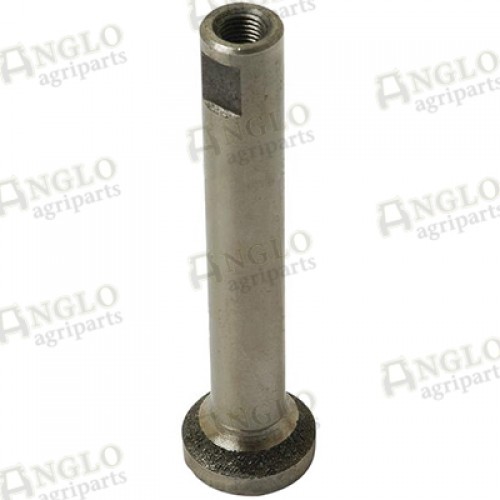

Tappet Cam Follower
A58862

Camshaft Gear
A43541
Idler Gear
A44587

Valve Guide Inlet & Exhaust
A54885 x3
A64597 x3
Spring, Valve
A59173 x6
A45648 x6
Valve Cotter - 2 Req''d Per Valve
A57036 x12

1. Oil Pump
A58419
2. Oil Pump Drive Gear
 A51850
3. Bushing, Drive Gear
A65436

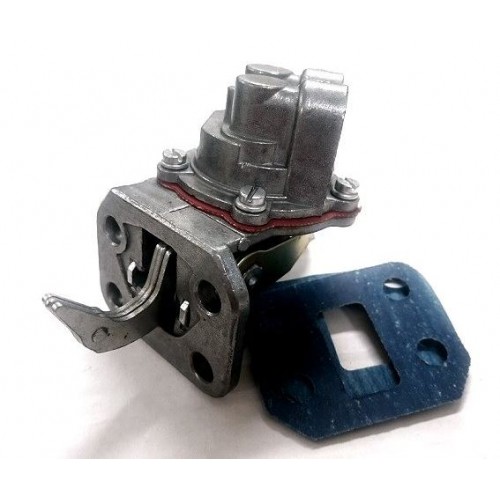

Fuel Lift Pump - 4 Bolt Mounting
A55504
1. Water Pump (Without Pulley)
A56513
2. Thermostat

A51262

Rocker Arm LH
A49898
Rocker Arm RH
A43150

Heater Plug - Spade Terminal
A55507

(1) Semi Finished Liner A64873 also available
(2) Use Main Bearing Set, A40254 from ESN U983574C.
